Parts by Level
Check key parts and quantities for each Lv.1–Lv.7 stage.
Basic AssemblyBasic use of bolts, nuts, and supports
01
Key Parts

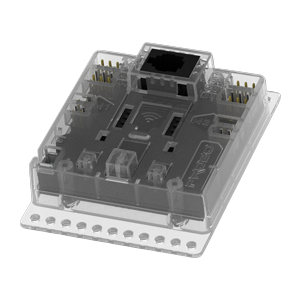

CPU Board
Stands for Central Processing Unit—the brain of Provo Technic. It holds the coding logic and controls the other parts. Provo Technic always needs the CPU board.

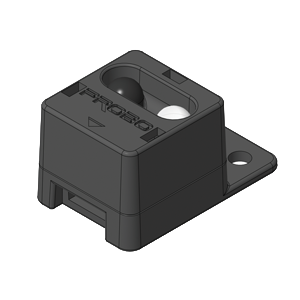

IR Sensor Board
An infrared sensor module with a transmitter and receiver. The transmitter emits invisible infrared light, and the receiver measures how much bounces back to detect how close an object is.

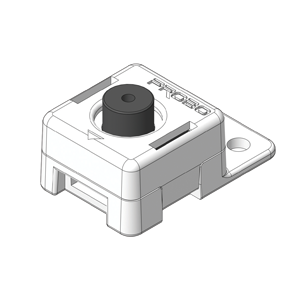

Switch Board
A push-button switch: pressing it lets current flow, and releasing it cuts the current. The crisp click sound makes it easy to tell whether the button is pressed.
USB Downloader
A cable that links your computer to the CPU board so coded data can be exchanged. While connected, the CPU board is powered by the computer through the USB downloader.
02
Parts Checklist
CPU Board
1
Infrared Sensor
2
Switch Board
4

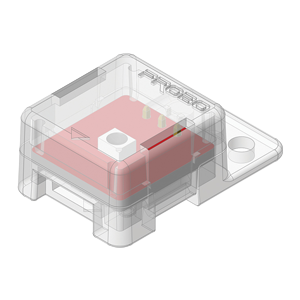

Red LED Board
2

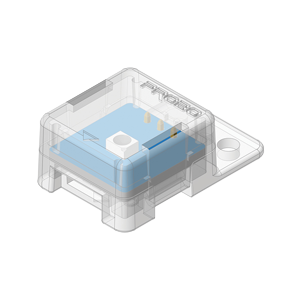

Blue LED Board
2

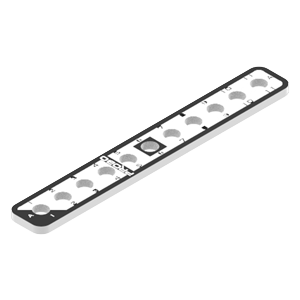

11-Hole Frame
5

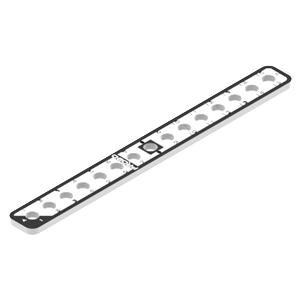

15-Hole Frame
2

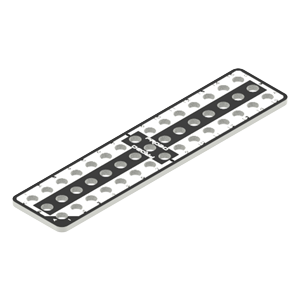

3×15 Frame
2

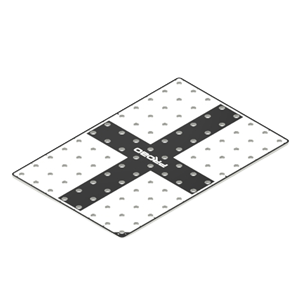

8×12 Block
1
DC Motor R-120
2

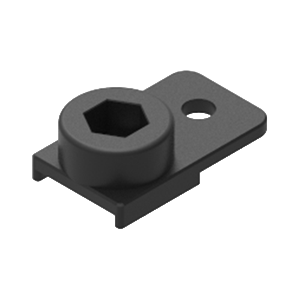

Motor Horn
2

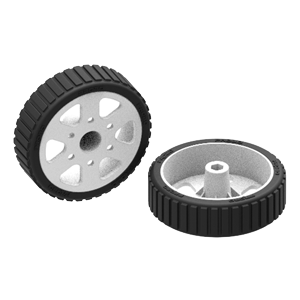

Wheel & Tire
2

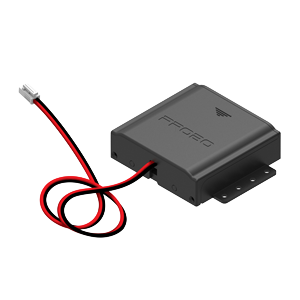

Battery Case
1

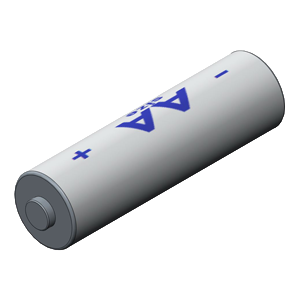

AA Battery
4

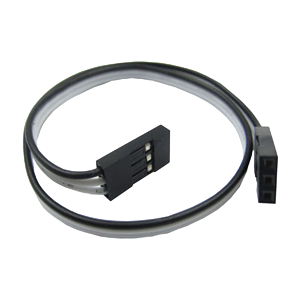

3-Pin Cable
8

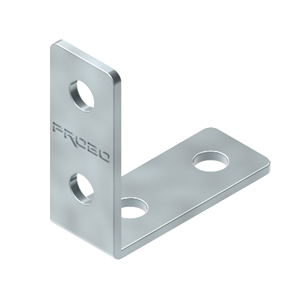

L 2×2 Frame
6

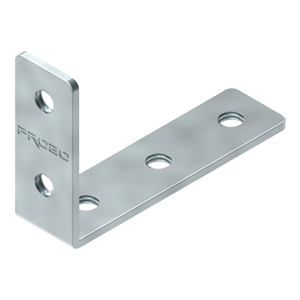

L-Tab 2×3
4

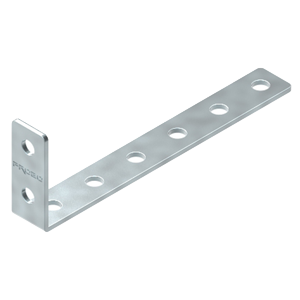

L 2×6 Frame
2
Flange Nut
40
5mm Bolt
40
8mm Bolt
40

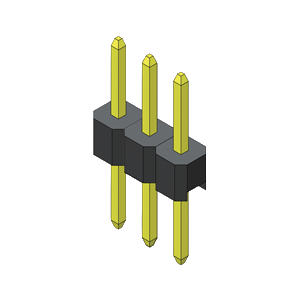

3-Pin Extension
4

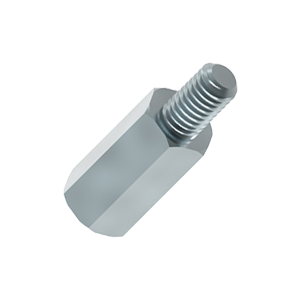

10mm Support
8
20mm Support
6

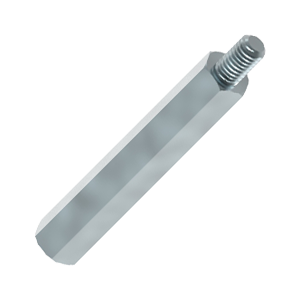

30mm Support
4

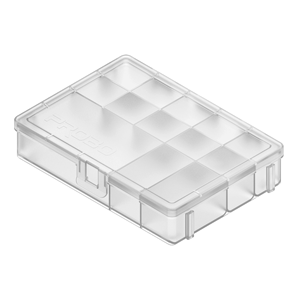

Parts Case
1

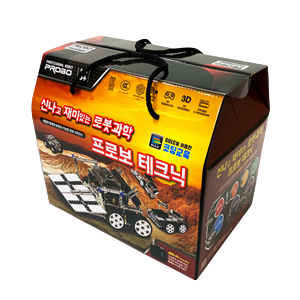

Paper Box
1
03
Completed Robots
11
Singing Owl Saeyo
Aircraft
Obstacle-detecting Bumper Car
Seal Bono
Dinosaur Tino
Patrol Car
Cockroach Rotchi
Alligator Ally
Battle Thunderbolt
Whack-a-Mole Game
Pet Dog Aji
